Κωδ. είδ. 557278

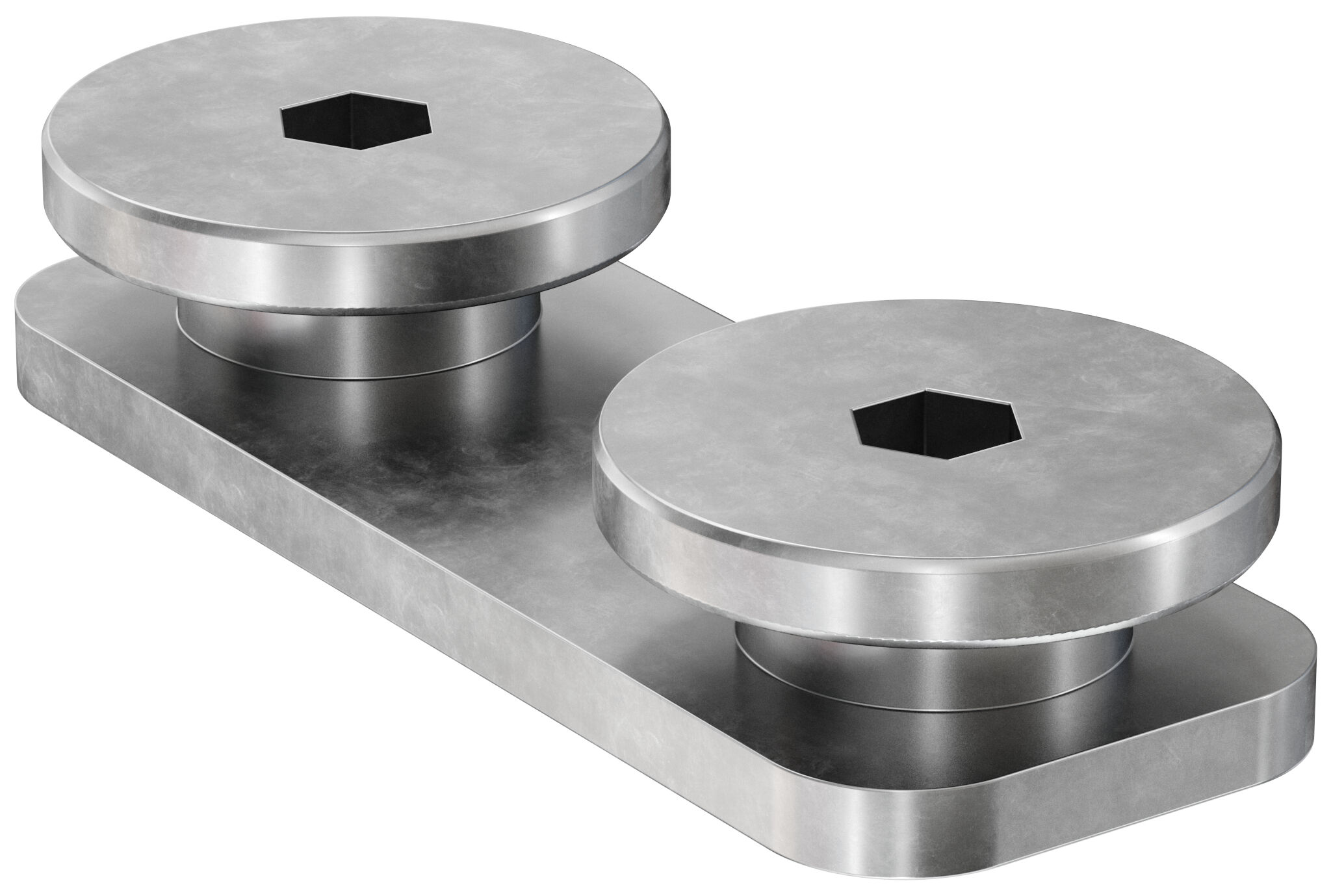

FDCC zl

Χαρακτηριστικά

Material base plate: JIS G3131-SPHE (similar to DD13 according to DIN EN 10111, material no.: 1.0335)
Material screw: steel grade 8.8
Zinc plating: electro zinc-plated, min. 5 µm

Εφαρμογές

Easy construction of double channels made from the FUS channel assortment.
Suitable for FUS channels FUS 41 and FUS 62 with thickness 2,0 and 2,5 mm.
The connection of two single channels is made with the channel connector inside the channel slots.
Each double channel has to be equipped with an FDCC at both ends and additional FDCCs in the given installation distance as per load chart.

Λειτουργικότητα

Load case 1

FUS 41D/2,0 - 2,5

FUS 62D/2,5
